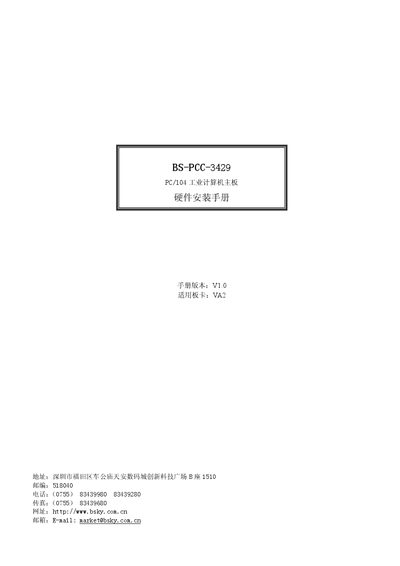

This document is an introduction to the hardware installation manual of the BS-PCC-3429 PC/104 industrial computer motherboard. The motherboard has various features, and detailed specifications can be found in the document.
This guide describes the PCC-3429 PC/104 industrial computer motherboard, its features, and how to install and configure the board in embedded applications such as medical devices, instrumentation and network terminals. It covers product overview, specifications, connector locations, jumper settings, BIOS configuration, driver installation, GPIO programming examples and troubleshooting tips. This manual is written in Chinese.
| Processor | STPC Atlas CPU, selectable 66/90/100/133 MHz |
|---|---|
| System Memory | 32 MB SDRAM (64 MB optional) |
| BIOS | Phoenix BIOS, plug‑and‑play |
| Display Interfaces | CRT (max 1280×1024×75 bpp) and 18‑bit TFT LCD (max 1024×768×18 bpp) |
| LAN | RealTek RTL8100BL 10/100 Mbps Ethernet controller |
| USB Ports | Two USB 1.1 ports |
| Power Supply | +5 V @ 0.914 A max (single‑supply) |
| Dimensions | 90 mm × 96 mm (PC/104 standard) |
| Operating Temperature | -20 °C to +70 °C |
| Watchdog Timer | Programmable 0‑15 s interval |
Set jumper JP1 to the closed position to clear the CMOS.
Use jumper JP2 to choose the LCD panel voltage according to the wiring guide.
Set jumper JP3 to define the D0C memory space (e.g., 8 MB‑1 GB ranges).
Run the provided C code that sets one GPIO group as output and the other as input, then compare the read values to verify operation.
