This document describes the main features and characteristics of Caterpillar diesel generator sets, including low fuel consumption design, wide range of accessories, and worldwide product support.

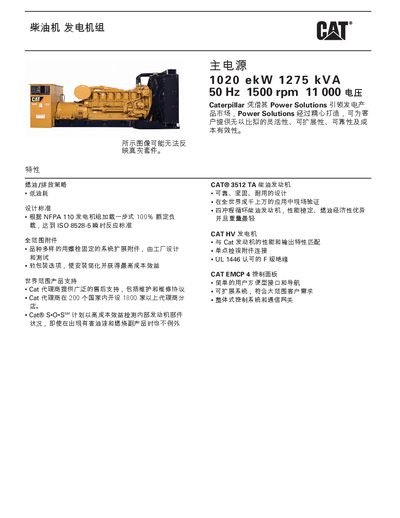

This manual provides detailed information on the Caterpillar 3512 TA diesel engine and its 1020 ekW (1275 kVA) generator set. It covers technical specifications, control system features, safety certifications, and recommended installation options.
The document also includes dimensions, weight, fuel system details, and guidance on maintenance indicators, emergency stop functions, and remote monitoring capabilities. All data are presented in SI units for international reference. This manual is written in Chinese.
| Rated Power | 1020 ekW (1275 kVA) |
|---|---|
| Rated Speed | 1500 rpm |
| Voltage | 11 000 V |
| Engine Type | V‑12 four‑stroke |
| Bore | 170.00 mm |
| Stroke | 190.00 mm |
| Fuel System | ATAAC |
| Control Panel | CAT EMCP 4 |
| Length | 5544.8 mm |
| Width | 2073.1 mm |
| Height | 2367.2 mm |
| Weight | 14 248 kg |
The set is rated at 1020 ekW (1275 kVA) with a nominal voltage of 11 000 V, operating at 50 Hz and 1500 rpm.
It complies with UL 1446 F‑class insulation, CSA, CE, and other international standards such as ISO 8528‑5 and NFPA 110.
It uses a CAT EMCP 4 control panel with digital voltage regulation, Modbus RTU communication, and programmable protection relays.
