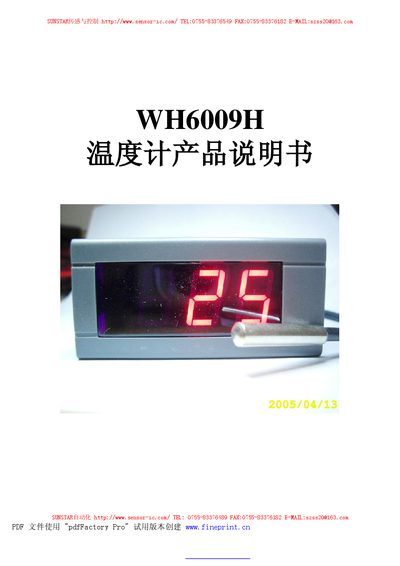

WH6009H temperature meter product manual, introduces the temperature measurement range, temperature measurement error, sensor model, working voltage, working current, working temperature, storage temperature and other information.
The WH6009H is a temperature sensor produced by SUNSTAR. This manual supplies the essential technical data, power requirements, and contact information needed for proper installation and use.
Key specifications include a measurement range of -50 °C to 110 °C, an operating temperature of 0 °C‑50 °C, storage limits of -10 °C‑60 °C, NTC (10 kΩ/3435) sensor type, and power options of AC 220 V or DC 12 V with a maximum current of 20 mA.
| Temperature measurement range | -50°C ~ 110°C |
|---|---|
| Operating temperature range | 0°C ~ 50°C |
| Storage temperature range | -10°C ~ 60°C |
| Sensor type | NTC (10K/3435) |
| Power supply | AC220V / DC12V |
| Maximum current | 20 mA |
| Maximum temperature rating | 405°C |
The sensor measures temperatures from -50 °C to 110 °C.
It can be powered by AC 220 V or DC 12 V.
The device uses an NTC thermistor (10 kΩ/3435).
