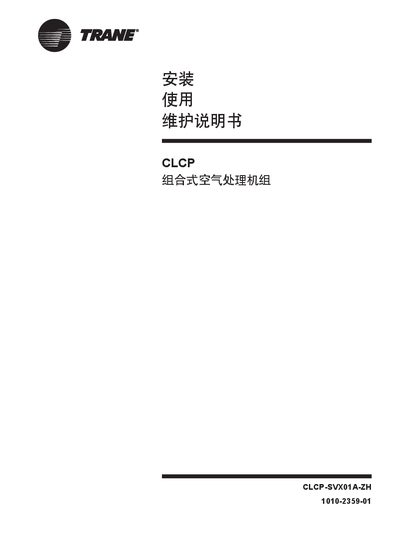

This manual introduces the installation, use and maintenance of CLPC combination air handling units, including unit layout drawings, unit installation, wiring/start-up procedures, maintenance and fault analysis.
The manual covers safety warnings, acceptance procedures, handling, lifting, and installation of the CLCP‑SVX01A‑ZH air‑treatment unit. It notes that the guide cannot cover every possible installation scenario and advises contacting Trane for special cases.
Key sections describe transport and packaging, recommended lifting methods, layout and duct design, minimum service clearances, and detailed wiring and pipe connections. Technical data such as motor power and voltage limits are also included. This manual is written in Chinese.
| Motor power and voltage | 15.0 kW / 380‑415 V / 3‑phase / 50 Hz |
|---|---|
| Maximum voltage deviation | 10 % |
Record the damage on the delivery note and notify the carrier and the local Trane sales office in writing within 72 hours.
Use the recommended lifting chains shown in the manual and ensure the lifting lugs do not damage the unit’s surface.
The voltage deviation must not exceed 10 %.
The unit rests on a transport base and is protected by packaging.
