MCU-PTZ031 is a keyboard controller for speed dome cameras, featuring RS485/232 output interface, easy to operate and adjustable with multiple speeds.

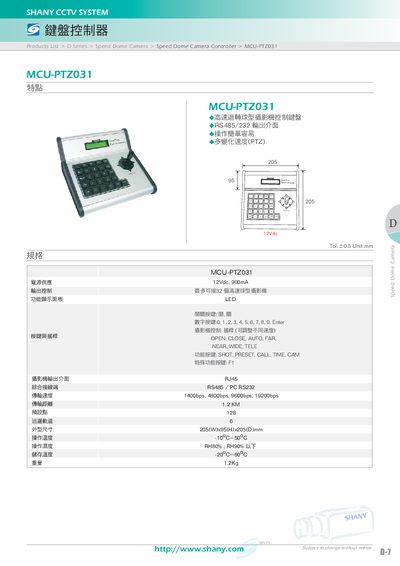

This manual describes the Shany MCU-PTZ031 keyboard controller used with speed dome cameras. It outlines the physical layout, key functions, and supported commands such as PTZ control, preset handling, and zoom operations.
Technical details include power requirements, communication interfaces (RS485/RS232), environmental limits, dimensions, and weight. The document also lists supported baud rates and connector types for integration with CCTV systems.
| Power Supply | 12 V, 900 mA |
|---|---|
| Dimensions | 205 mm (W) × 95 mm (H) × 205 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -20 °C ~ 60 °C |
| Relative Humidity | 80 % ~ 90 % |
| RS485/RS232 Baud Rates | 1400 bps, 4800 bps, 9600 bps, 19200 bps |
It requires a 12 V power source with a current rating of 900 mA.
The controller supports both RS485 and RS232 interfaces with selectable baud rates.
The unit measures 205 mm wide, 95 mm high, and 205 mm deep.
It operates from –20 °C up to 60 °C.
