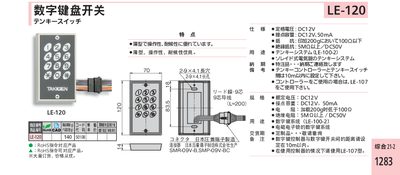

This document introduces the features and specifications of the SMR-09V-B and SMP-09V-BC connectors produced by Japan Crimp Terminal Manufacturing Co., Ltd., as well as the LE-120 digital keypad switch.
This document describes the LE-120 digital keyboard switch, highlighting its thin design, good operability, and weather resistance. It includes key specifications such as rated voltage, contact capacity, resistance, and insulation resistance.
Installation notes advise keeping the distance between the keypad controller and the switch within 10 m and recommend using the LE-107 controller when a controller is required. The manual also mentions compatibility with the LE-100-2 keypad system and provides ordering information for custom items. This manual is written in Chinese.
| Rated Voltage | DC12V |
|---|---|
| Contact Capacity | DC12V, 50 mA |
| Resistance (at 200 g load) | ≤100 Ω |
| Insulation Resistance | ≥5 MΩ at DC50V |
The rated voltage is DC12V.
The contact capacity is DC12V, 50 mA.
The insulation resistance must be at least 5 MΩ at DC50V.
The distance should be set within 10 m.
