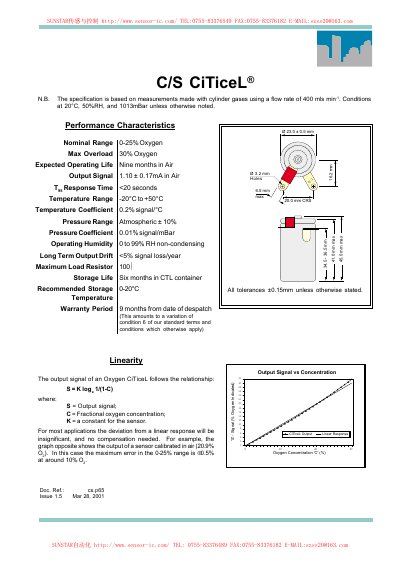

This document provides detailed information on the performance characteristics of the C/S CiTiceL® oxygen sensor.
The CiTiceL® oxygen sensor data sheet provides detailed performance characteristics such as nominal range, output signal, response time and operating temperature. It also includes information on pressure range, humidity effects, long‑term drift and warranty.
The document lists the full product line of City Technology gas sensors, including model numbers, detection targets, dimensions and typical applications for oxygen, carbon monoxide, hydrogen, ammonia and many other gases. This manual is written in Chinese.
| Nominal range (O₂) | 0‑25 % O₂ |
|---|---|
| Output signal (air) | 1.10 ± 0.17 mA |
| Response time | < 20 seconds |
| Temperature range | -20 °C to +50 °C |
| Temperature coefficient | 0.2 % signal/°C |
| Pressure range | Atmospheric ±10 % |
| Pressure coefficient | 0.01 % signal/mBar |
| Storage life (max load resistor) | 6 months |
| Warranty period | 9 months from dispatch |
The sensor measures oxygen from 0 % to 25 % O₂.
The sensor’s response time is less than 20 seconds.
The sensor is covered by a 9‑month warranty from the date of dispatch.
