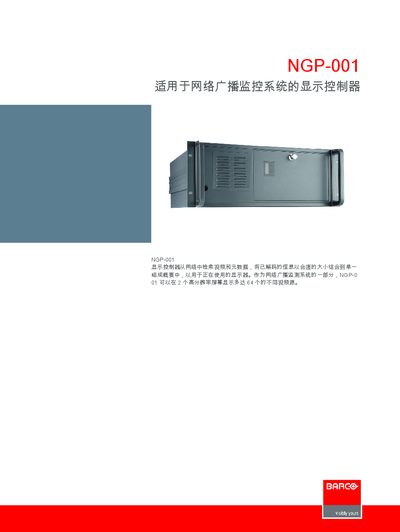

The NGP-001 is a display controller for network broadcast monitoring systems that retrieves video and metadata from the network, combines the decoded information into a single composition overview at an appropriate size for the display device in use. As part of a network broadcast monitoring system, the NGP-001 can display up to 64 different video sources on 2 high-resolution screens.
The NGP-001 display controller retrieves video and metadata from the network, combines the decoded information into a single summary for the connected displays, and as part of a network broadcast monitoring system can show up to 64 different video sources on two high‑resolution screens.
Technical specifications include an industrial 4U rack‑mount PC chassis, Intel® Core™ 2 Duo 2.13 GHz CPU, PCI‑Express JPEG‑2000 decoder board, Nvidia Quadro 4600 graphics card, dimensions of 440 mm × 482 mm × 566 mm, weight around 18 kg, and a power supply of 100‑240 V, 50/60 Hz with a maximum consumption of 2 × 650 W. The unit operates in environments up to 80 % humidity. This manual is written in Chinese.
| Form factor | Industrial 4U rack‑mount PC chassis |
|---|---|
| CPU | Intel Core™ 2 Duo 2.13 GHz |
| JPEG‑2000 decoder | PCI‑Express JPEG‑2000 decoder board |
| Graphics card | nVidia Quadro 4600 |
| Video source capacity | Up to 64 video sources on two high‑resolution screens |
| Height | 440 mm |
| Width | 482 mm |
| Depth | 566 mm |
| Weight | 18.0 kg |
| Power input | 100‑240 V, 50/60 Hz |
| Power consumption | 2 × 650 W |
| Maximum operating humidity | 80 % |
It can display up to 64 different video sources on two high‑resolution screens.
