Hydra Compact Twin is a universal multi-video insertion unit that can synchronously control up to 60 analog or digital input signals. It has advanced alarm and warning functions and can be operated through a standard browser. One PC can control multiple networked units, displaying hundreds of signal sources together.
The Hydra Compact Twin is a multi‑video insert unit that supports 4:3 and 16:9 aspect ratios, SD, SDI, SECAM, NTSC, PAL and HD‑SDI video formats. It offers integrated alarm, GPIO control, SNMP management and LAN connectivity for flexible system integration.

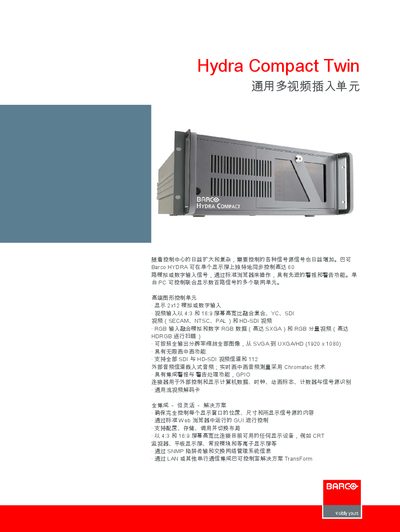

The unit is housed in a 4U rack‑mount chassis (440 mm × 540 mm × 177 mm) with a power consumption of 450 W, heat dissipation of 1550 BTU, and weighs 21 kg. It provides three redundant power supplies, 2×4 input/output slots, and supports external audio and RGB data streams. This manual is written in Chinese.
| Rack unit height | 4U |
|---|---|
| Power consumption | 450 W |
| Heat dissipation | 1550 BTU |
| Input voltage | 100-240 VAC, 47-63 Hz |
| I/O slots | 2x4 |
