PM Designer 1.2.69 User Manual

PM Designer is a touch screen HMI software that allows users to quickly design HMI screens and download them to the screen master.

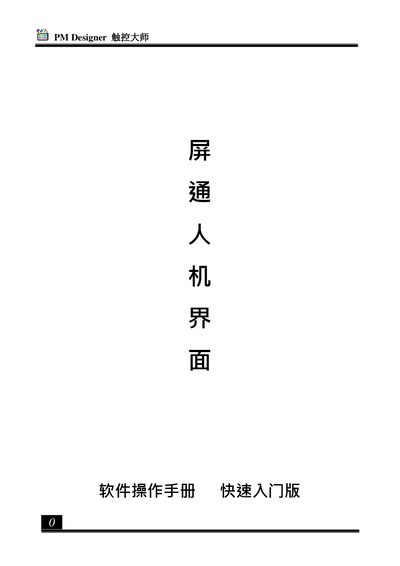

PM Designer 1.2.69 User Manual - cover page
Brand
PM
Category
Automation control Equipment
Document type
User Manual
Language
Chinese
Pages
190
File format
PDF
File size
8.3 MB
Updated
30 September, 2023
MD5 checksum
16F32896278C8EC7981C85BE1051FC1D
PDF
PM Designer 1.2.69 User Manual PDF

About this manual

This manual introduces the PM Designer touchscreen software, describing its core functions, interface design tools, and customization options. It covers project creation, object properties, font management, and advanced features such as alarm screens, historical data collection, and recipe management.

The guide also details hardware and operating‑system requirements, installation steps using the InstallShield wizard, and tips for managing multiple HMI projects, zones, and data points. Appendices list compatible controllers and devices. This manual is written in Chinese.

What's inside

  • Introduction to PM Designer Touchscreen Software
  • Installation Requirements and Procedure
  • Creating Screens and Main Menus
  • Object Properties and Font Management
  • Data Input, Display, and Numeric Controls
  • Alarm Screen Creation
  • Historical Data Screen Creation
  • Graph Screen Creation
  • Recipe Management
  • Common Functions and Quick Settings

Specifications

CPU RequirementPentium CPU II
Minimum RAM1024 MB
Free Disk Space512 MB
Supported InterfacesSerial port, USB
Supported Operating SystemsWindows 2000/XP/Vista/Windows 7
Maximum Zones for Data Collection16

Frequently asked questions

Which operating systems are supported by PM Designer?

The software runs on Windows 2000, Windows XP, Windows Vista, and Windows 7.

How many zones can be used for data collection in a project?

Up to 16 zones can be defined for data collection and recipe management.
