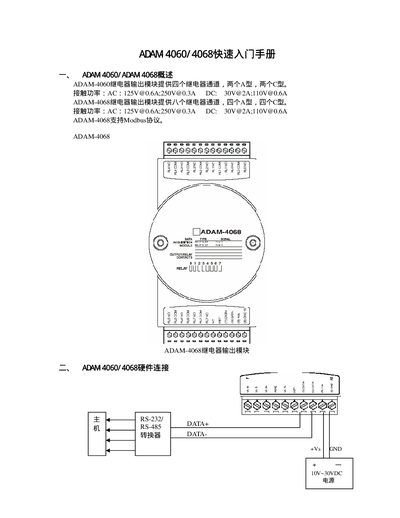

ADAM-4060/4068 quick start manual introduces ADAM-4060/4068 relay output module overview, hardware connection, software usage, module configuration and software programming.
The ADAM-4060 and ADAM-4068 are Advantech I/O modules that provide analog and digital input/output functions for automation systems. They support both AC and DC power ranges and communicate via RS-232/RS-485.
The guide walks through installing the modules, configuring the Advantech ADAM‑4000‑5000 Utility, setting COM port parameters (baud rate, data bits, parity, stop bits), and using the built‑in terminal to send single‑command messages. It also shows how to view module parameters and manage devices with Advantech Device Manager.
| AC Power Supply | 125V @0.6A; 250V @0.3A |
|---|---|
| DC Power Supply | 30V @2A; 110V @0.6A |
| Baud Rate | 9600 bps |
| Checksum Enabled | No |
The Advantech ADAM‑4000‑5000 Utility (Version 3.10.06 or 3.11) is used to configure the modules.
