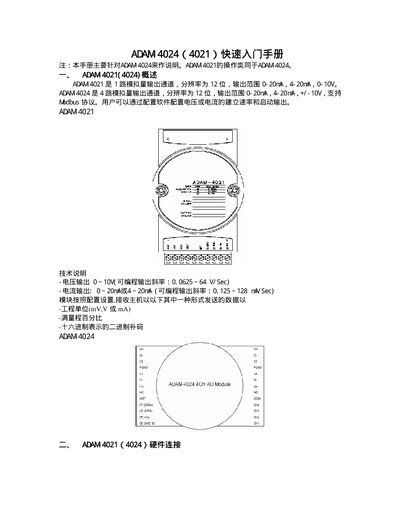

ADAM-4021(4024) is an analog output module that allows configuration of voltage or current ramp-up rate and start output. It supports output ranges of 0-20mA, 4-20mA, and 0-10V. Configuration and control can be done using ADAM-4000 Utility software.
The ADAM-4024 (and ADAM-4021) is a 4‑channel analog output module with 12‑bit resolution. It provides current outputs of 0‑20 nA or 4‑20 nA and voltage outputs of ±10 V, and it supports Modbus communication.
The guide covers hardware connections, the ADAM‑4000 Utility installation, quick‑use steps, address and baud‑rate settings, single‑command operation, calibration procedures, and example programming using the provided DLLs and sample code.
| Number of analog output channels | 4 |
|---|---|
| Resolution | 12‑bit |
| Supported communication protocol | Modbus, Advantech |
| Firmware version example | 18 |
The ADAM-4024 provides four analog output channels.
The module supports Modbus and Advantech proprietary protocols.
