ELXUX-X signal surge protector can be used for one or two pairs of telephone/data lines. The current carrying capacity is large, with a maximum of 10kA (8/20μs). Fast response speed and small response time; Repeated protection in the environment where lightning strikes frequently; TH35 type rail mounting, easy for various optimization combinations; flame retardant PA shell, strong and high insulation strength.
The ELXUX-X series protects telephone and data signal lines from over‑voltage transients in a variety of voltage systems. It is designed for 12 V, 15 V, 24 V, 48 V and 170 V applications and can guard one or two pairs of lines depending on the model.

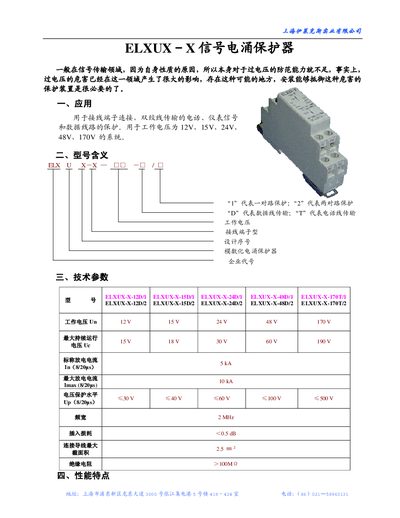

The document lists technical parameters such as a 2 MHz bandwidth, <0.5 dB insertion loss, and >100 MΩ insulation resistance, and gives ordering guidance including model codes that indicate protection pairs and line type. This manual is written in Chinese.
| Working Voltage | 12V, 15V, 24V, 48V, 170V |
|---|---|
| Maximum Continuous Operating Voltage | 15V, 18V, 30V, 60V, 190V |
| Maximum Discharge Current | 10 kA (8/20µs) |
| Voltage Protection Level | 30V, 40V, 60V, 100V, 500V |
| Frequency Bandwidth | 2 MHz |
| Insertion Loss | <0.5 dB |
| Insulation Resistance | >100 MΩ |
It protects systems operating at 12 V, 15 V, 24 V, 48 V and 170 V.
The device can handle up to 10 kA discharge current (8/20 µs).
Models with “1” protect one pair of lines, while “2” protects two pairs; “D” indicates data lines and “T” telephone lines.
