UT-2088 Data I/O Control Module User Manual

This manual introduces the use of UTEK UT-2088 data parallel input output (I/O) control card, including product introduction, product application and specifications, installation, programming control, etc.

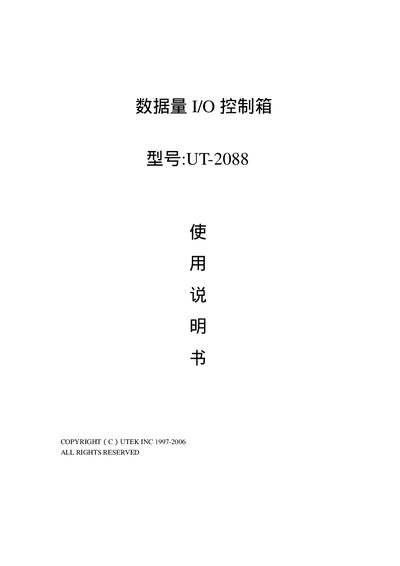

UT-2088 Data I/O Control Module User Manual - cover page
Brand
UT-2088数据量
Category
Other device
Document type
User Manual
Language
Chinese
Pages
6
File format
PDF
File size
86 KB
Published
28 November, 2011
Updated
01 October, 2023
MD5 checksum
AEEA8B51BB038CD7485F24AD5A4F1311
PDF
UT-2088 Data I/O Control Module User Manual PDF

About this manual

The UT-2088 is a data parallel I/O control module that supports 8‑bit or 16‑bit data input and output with TTL/DTL voltage levels. It can communicate via external RS‑232 and RS‑485 interfaces, making it suitable for industrial automation and data acquisition applications.

The manual includes parameter settings, wiring diagrams for DB25 and DB9 connectors, terminal definitions, and Quick Base programming examples to help users configure and operate the module efficiently. This manual is written in Chinese.

What's inside

  • Function Overview
  • Parameter Settings
  • Wiring Diagram
  • Terminal Definitions
  • Quick Base Programming

Specifications

Signal levelsTTL/DTL
Communication interfacesRS‑232, RS‑485
I/O connector type25‑pin DB25
Serial connector type9‑pin DB9

Frequently asked questions

Which communication interfaces are available on the UT-2088?

The module can communicate via RS‑232 and RS‑485 interfaces.

What type of connectors are used for the I/O signals?

The I/O signals use a 25‑pin DB25 connector, and a 9‑pin DB9 connector is provided for serial communication.

What voltage levels does the module accept for I/O signals?

It accepts TTL and DTL voltage levels.
