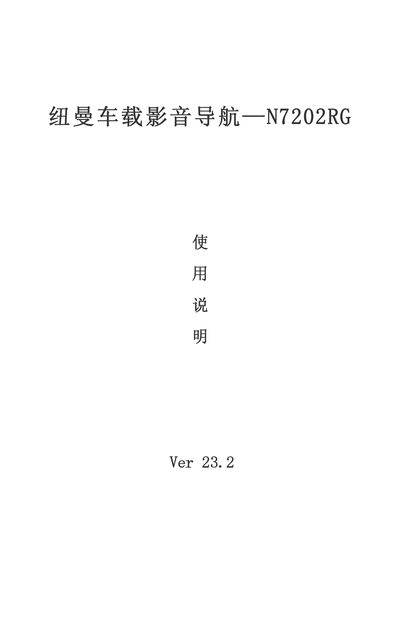

User manual for Newman in-car audio and navigation system N7202RG, including installation procedure, precautions, connection diagram, remote control operation, panel operation, home menu, multimedia menu, TV menu, Bluetooth menu, radio operation, disc menu, navigation menu, AUX input menu, settings menu, troubleshooting, technical specifications.
This manual guides users through installing the N7202RG navigation unit in a vehicle, including wiring the power, ground, ignition, speaker and antenna connections, and securing the fixed mounting block. Safety precautions, such as avoiding short circuits and using proper fuse ratings, are highlighted.
The guide then details how to operate the device via the remote control and panel, covering the home menu, multimedia, TV, Bluetooth, radio, disc, navigation, AUX and settings functions. It also includes fault troubleshooting, technical parameters, a list of standard accessories and hazardous substance information. This manual is written in Chinese.
| Screen size | 7 inch TFT-LCD |
|---|---|
| Resolution | 480×234 |
| Video formats | RM, RMVB |
| Audio format | MP3 |
| Image format | JPEG |
| Channel volume adjustment | ±10 dB |
| FM stations stored | 18 |
| AM stations stored | 12 |
| External video input | NTSC/PAL/SECAM |
| Maximum power (front & rear) | 40W×4 |
| Operating temperature range | -10°C to 60°C |
| Storage temperature range | -20°C to 85°C |
Press the reset button on the unit; if the problem persists, contact the dealer.
The device requires a 12 V DC power source.
