EL370 is an integrated controller, reader and keyboard in one door access unit, very stable and reliable. It can be fully offline and operated independently, through the built-in keyboard and LCD display for setting, or connected to the computer EsofWIN door access management software.
The EL370 access control all‑in‑one unit integrates a controller, card reader and keypad with an LCD display. It can operate independently or be linked to the EsofWIN access control software. The device stores up to 2000 user records and 1000 event logs, and offers a friendly interface with 6 function keys and 10 numeric keys.

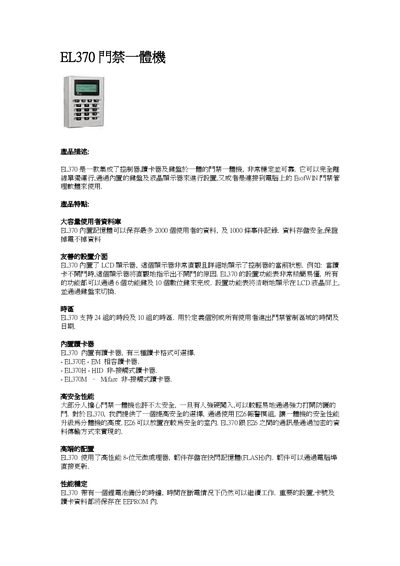

The unit supports three card formats (EL370E, EL370H, EL370M), provides high security via encrypted communication with an optional EZ6 alarm module, and includes a backup lithium battery for timekeeping. Technical specifications include an 8‑bit 40 MHz CPU, 2 KB RAM, 32 KB flash, 64 KB EEPROM, RS‑485 communication, 12 VDC power supply, and operating temperature from 0 °C to 50 °C. This manual is written in Chinese.
| CPU | 8‑bit CPU (40 MHz) |
|---|---|
| RAM | 2 KB |
| Flash Memory | 32 KB |
| EEPROM | 64 KB |
| Power Supply | 12 VDC |
| Operating Temperature | 0 °C – 50 °C |
| User Database Capacity | 2000 users |
| Event Log Capacity | 1000 events |
| Communication Interface | RS‑485 |
The EL370 can store up to 2000 user records in its internal database.
It supports three card formats: EL370E (EM compatible), EL370H (HD non‑contact), and EL370M (Mifare non‑contact).
The device uses an RS‑485 interface for communication.
It requires a 12 VDC power source.
