Shanbiao PS93 Digital Three-Phase Power Tester User Manual

This document is a user manual that introduces the features and operation process of the PS93 digital three-phase power tester from Shanghai Anbiao Electronics Co., Ltd. Users are advised to read this manual carefully to ensure the correct use of the instrument.

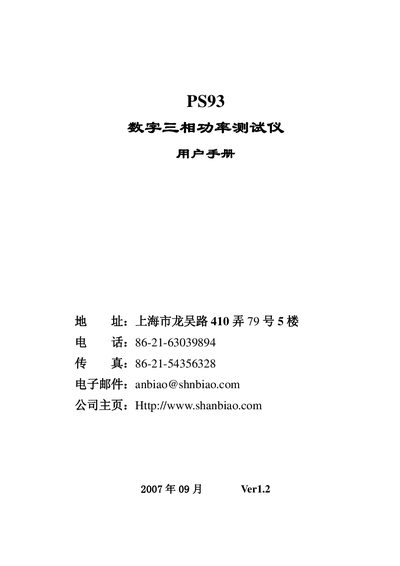

Shanbiao PS93 Digital Three-Phase Power Tester User Manual - cover page
Brand
PS93
Category
Other
Document type
User Manual
Language
Chinese
Pages
27
File format
PDF
File size
348 KB
Published
26 November, 2011
Updated
28 September, 2023
MD5 checksum
5900CA45F95E8FBC49AEAF43F06C4323

About this manual

The PS93 digital three‑phase power tester, produced by Shanbiao, uses digital sampling and micro‑computer technology to accurately measure voltage, current, power, power factor and frequency of three‑phase equipment. It features a LCD display and alarm indicators for easy reading.

The manual contains eight chapters covering product overview, technical specifications, structure and working principle, usage and operation, wiring methods, common faults with troubleshooting steps, a list of accessories, and additional safety and warranty information. This manual is written in Chinese.

What's inside

  • Overview
  • Specifications and Technical Indicators
  • Structure and Working Principle
  • Use and Operation
  • Wiring Method
  • Common Faults and Troubleshooting
  • Instrument Accessories
  • Other

Specifications

Phase voltage range10.0~300.0 V
Line voltage range10.0~500.0 V
Current range0.50~20.00 A
Phase power range0.50~10 kW
Total power range1000~20000 W
Power factor range0.5~1.0 ±0.03
Maximum humidity≤75 %
Power supplyAC 220 V ±10 % 50 Hz
Power consumption< 30 W
Dimensions (W×H×D)260 mm × 370 mm × 124 mm
Weight≈10 kg

Frequently asked questions

What power supply voltage should be used with the PS93?

The instrument requires an AC 220 V supply (maximum 250 V) with a maximum current of 5 A.

How can I resolve a situation where the display shows no measurement data?

Check that the measurement leads are correctly and securely connected to the instrument’s rear panel terminals, verify continuity with a multimeter, and reconnect any loose or broken wires.
