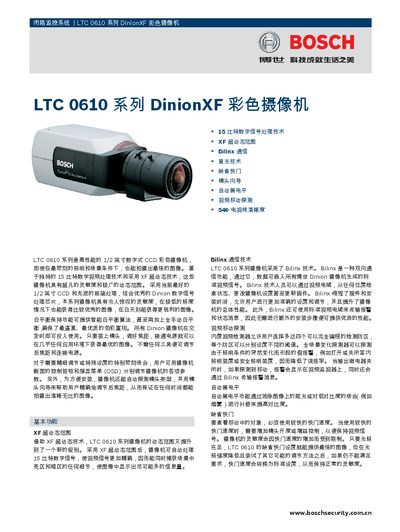

The LTC 0610 series is a high-performance 1/2-inch digital CCD color camera that can capture the best images even in the most challenging lighting and scene conditions. With XF Super Dynamic technology and 15-bit digital video processing, it has extraordinary sensitivity and a wide dynamic range. It features intelligent white balance algorithm and Bilinx communication technology, providing excellent color reproduction and convenient settings and adjustments.
The LTC 0610 series DinionXF is a high‑performance 1/2‑inch CCD color camcorder with XF ultra‑dynamic range, Bilinx bidirectional communication, and star‑light technology for low‑light sensitivity. It offers programmable focus, lens‑guide assistance, and various image‑enhancement functions such as automatic black level and back‑light compensation.
This manual covers basic functions, detailed technical specifications, installation and configuration steps, accessory list, and troubleshooting information. It explains how to use Bilinx communication, set up motion detection zones, and adjust camera settings for optimal image quality. This manual is written in Chinese.
| Image sensor | 1/2‑inch CCD |
|---|---|
| Effective pixels (PAL) | 752 H × 582 V |
| Horizontal resolution | 540 TV lines |
| Signal‑to‑noise ratio | > 50 dB |
| Video output | 1 Ypp, 75 Ω |
Install the lens, set the focus, and power on the camera; rear focus can be adjusted without any tools.
The camera supports up to four programmable motion‑detection zones, each with adjustable thresholds.
