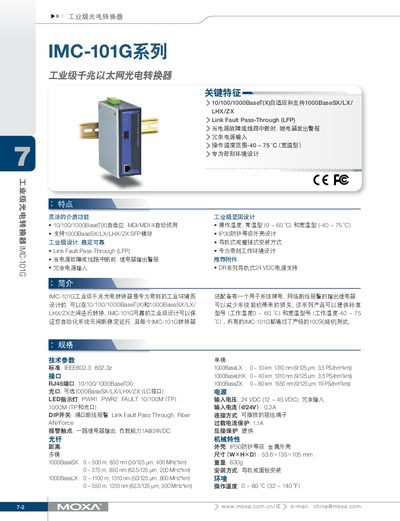

The IMC-101G series Gigabit Ethernet media converters support 10/100/1000BaseT(X) and 1000BaseSX/LX/LHX/ZX conversion, and are available in standard (0-60 °C) and wide temperature (-40-75 °C) versions. Each IMC-101G converter is equipped with an output relay for system power failure and network line break alarm.
The IMC-101G series is an industrial photoelectric converter supporting 10/100/1000Base‑T Ethernet and 1000Base‑SX/LX/LHX/ZX optical interfaces. It offers Link Fault Pass‑Through, redundant power inputs, and IP30 protection for robust operation in harsh environments.
Key mechanical data include a compact size of 53.6 × 135 × 105 mm, a weight of 630 g, and mounting options for panel or wall installation. The device operates from 0 °C to 60 °C in normal mode and from –40 °C to 75 °C in cold mode, with power supplied by 24 VDC (12‑45 VDC) and a typical current draw of 0.2 A. This manual is written in Chinese.
| Operating temperature (normal) | 0 °C – 60 °C |
|---|---|
| Dimensions (W×H×D) | 53.6 × 135 × 105 mm |
| Weight | 630 g |
| RJ45 port | 10/100/1000Base‑T |
| Optical port | 1000Base‑SX/LX/LHX/ZX |
| Power input voltage | 24 VDC (12‑45 VDC) |
| Power consumption | 0.2 A @24 VDC |
| LED indicators | PWR1, PWR2, FAULT |
The unit measures 53.6 mm × 135 mm × 105 mm (W × H × D).
