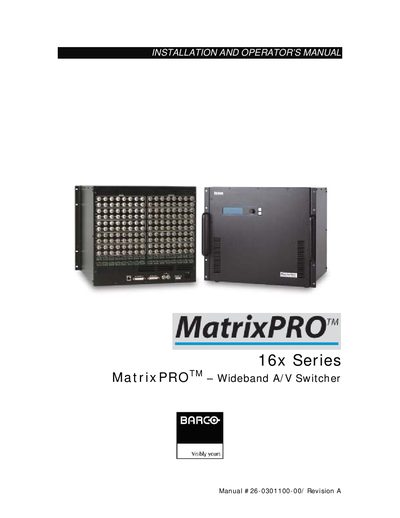

This manual is the installation and operator's manual for the MatrixPROTM 16x Series wideband A/V switcher. The manual includes installation and operating instructions for the product.
This manual covers safety precautions and installation steps for the MatrixPRO 16x series A/V switcher, including power source requirements, grounding, and proper use of power cords and fuses. It warns that the unit has no user‑serviceable parts and that the top cover must remain in place to avoid exposure to dangerous voltages.
The guide also details front‑panel operation, video and audio connection options, serial and Ethernet control interfaces, and provides the full technical specifications, environmental limits, and warranty information for the product.
| Frequency response | 20 Hz to 20 kHz, @2 V, 0.03 % THD+N |
|---|---|
| Audio output gain range | -76 dB to +20 dB |
| Power input voltage | 100‑240 VAC, 47‑63 Hz, auto‑configuring |
| Power dissipation | 150 W |
| Enclosure dimensions | 16.25" H × 17.0" W × 13" D (9U high, full rack width) |
| Weight | 50 lb (23 kg) |
| Operating temperature range | 0 °C to 40 °C |
| Relative humidity range | 0 % to 95 % non‑condensing |
| Serial control port | RS‑232/RS‑485, 25‑pin female D connector |
| Ethernet data rate | 10/100 Base‑T, half/full duplex with autodetect |
No, there are no user‑serviceable parts; removing the top cover exposes dangerous voltages.
The product is intended to operate from a power source that does not exceed 230 V rms between conductors.
The MatrixPRO 16x supports 16 stereo audio inputs, balanced or unbalanced.
The unit can operate in temperatures from 0 °C to 40 °C.
