SUZAKU-S SZ010-U00 SZ030-U00 Hardware manual Version 2.0.2 Manual

This manual introduces the overview and usage of SUZAKU-S, including safety precautions, hardware specifications, software installation and other contents.

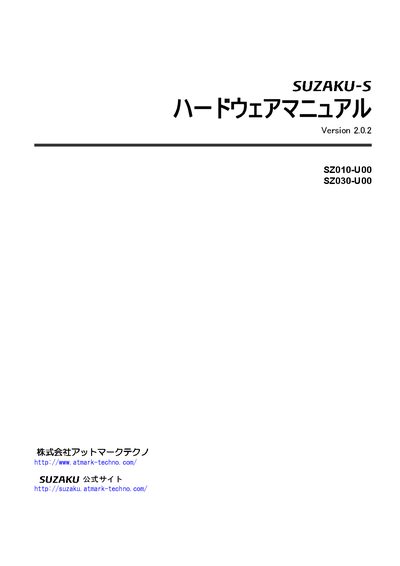

SUZAKU-S SZ010-U00 SZ030-U00 Hardware manual Version 2.0.2 Manual - cover page
Brand
SUZAKU-S
Category
Other device
Document type
User Manual
Language
Japanese
Pages
40
File format
PDF
File size
704 KB
Published
23 November, 2011
Updated
30 September, 2023
MD5 checksum
63E19A9D8D3D481D03ABD70A34786C7A
PDF
SUZAKU-S SZ010-U00 SZ030-U00 Hardware manual Version 2.0.2 Manual PDF

About this manual

This manual provides the hardware specifications, connector pin‑assignments, and power requirements for the SUZAKU‑S SZ010‑U00 and SZ030‑U00 boards. It includes safety precautions, warranty information, and handling instructions to ensure reliable operation.

The document also describes FPGA and software usage notes, revision history, and guidelines for board modifications, emphasizing that any unauthorized changes void the warranty. This manual is written in Japanese.

What's inside

  • Safety Precautions
  • Warranty Information
  • Handling and Power Requirements
  • FPGA Usage
  • Software Usage
  • Connector Pin Assignments
  • Board Layout
  • Revision History

Specifications

Power input voltage8.8 V

Frequently asked questions

What voltage should not be exceeded for the input power?

Do not input more than 8.8 V plus 5 % (i.e., exceed the specified 8.8 V).

Does modifying the board affect the warranty?

Yes, any modification to the board voids the warranty.
