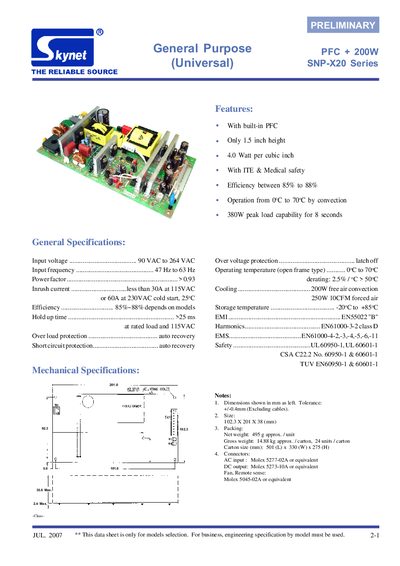

This document describes the technical specifications and features of the PFC + 200W SNP-X20 Series General Purpose Power Supply. The power supply has high efficiency, overload protection, short circuit protection, and complies with safety standards.
The SNP‑X20 series provides a universal 200 W general‑purpose power factor correction (PFC) solution with built‑in PFC, compact height (1.5 in), and high efficiency. It meets medical and ITE safety standards and operates from 0 °C to 70 °C by convection cooling.
The datasheet lists input and output specifications, mechanical dimensions, weight, connector types, and compliance with multiple safety and EMC standards (EN55022, EN61000‑3‑2, UL 60950‑1, etc.). Detailed output tables show voltage, current, ripple, regulation, and efficiency for each model variant.
| Efficiency | 85% to 88% |
|---|---|
| Operating temperature (open frame) | 0 °C to 70 °C |
| Dimensions | 102.3 mm × 201 mm × 38 mm |
| Net weight | 495 g |
| Peak load capability | 380 W for 8 s |
The efficiency is between 85 % and 88 %.
The open‑frame type operates from 0 °C to 70 °C.
It measures 102.3 mm × 201 mm × 38 mm.
