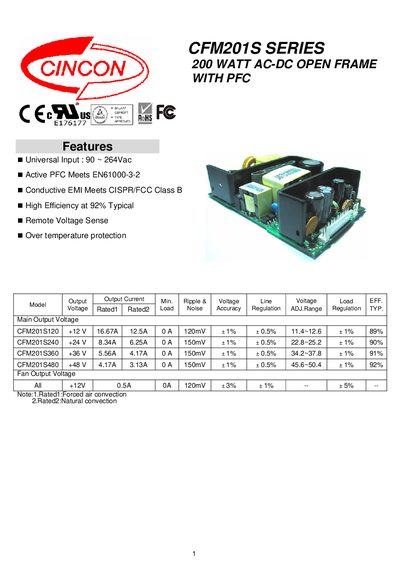

CFM201S series 200 watt AC-DC open frame power supply has the following features: Universal input: 90~264Vac; Active PFC meets EN61000-3-2; Conductive EMI meets CISPR/FCC Class B; High Efficiency at 92% typical; Remote Voltage Sense; Over temperature protection.
The CFM201S series from Cincon is a 200 W AC‑DC open‑frame power supply featuring universal input (90‑264 Vac), active PFC, and high efficiency (≈92%). It offers multiple output voltages (+12 V, +24 V, +36 V, +48 V) with remote voltage sense and built‑in protection such as over‑temperature and over‑voltage.
The manual includes detailed electrical specifications, mechanical dimensions, environmental limits, and pin‑out diagrams for the standard and optional connectors. It also provides derating curves for forced‑air and natural‑convection cooling, as well as installation notes for both open‑frame and covered versions.
| Input Voltage Range | 90~264 Vac |
|---|---|
| Typical Efficiency | 92% typical |
| Maximum Output Power | 200 W |
| Open‑frame Dimensions | 5.00 x 3.00 x 1.44 in (127 x 76.20 x 36.60 mm) |
| EMI Compliance | CISPR/FCC Class B |
| Protection Features | Over‑temperature, over‑voltage, short‑circuit, auto‑recovery |
The unit accepts a universal AC input from 90 Vac to 264 Vac.
The CFM201S series achieves a typical efficiency of about 92 %.
The open‑frame version measures 5.00 × 3.00 × 1.44 inches (127 × 76.20 × 36.60 mm).
It includes over‑temperature, over‑voltage, short‑circuit protection and auto‑recovery modes.
