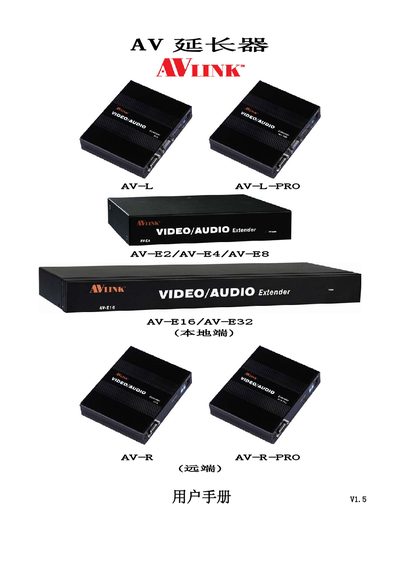

The AV extender AV-L AV-L-PRO AV-E2/AV-E4/AV-E8 AV-E16/AV-E32 (local end) AV-R AV-R-PRO (remote end) User Manual V1.5 introduces the features of AV extenders, including the ability to extend video and audio signals to 180/300 meters, the adjustable Cat.5 cable length compensation, the adjustable VGA signal gain, the audio sampling rate of 96KHz, and the ability to extend the sound output from a microphone to an audio amplifier.
This manual provides installation and operating instructions for the AV Extender series (AV‑E2, AV‑E4, AV‑E8 and related models). It explains how to connect video (HD‑15 VGA), audio (3.5 mm stereo), and network (Cat‑5 RJ‑45) cables on both the local and remote sides, and includes wiring diagrams and connector pin‑outs.
The document also lists technical specifications such as power requirements, supported video resolution, maximum cable lengths for VGA and audio signals, and physical dimensions for each model. Reference tables show the differences between standard and PRO versions of the units. This manual is written in Japanese.
| Power supply | DC 12 V 600 mA |
|---|---|
| Maximum video resolution | 1280 × 1024 @ 60 Hz |
| Weight (AV‑E2/E4) | 288 g |
| Dimensions (AV‑E2/E4) | 130 × 110.5 × 25 mm |
| Maximum cable length (VGA/audio) | 180 m (AV‑E2/E4) / 300 m (AV‑E8) |
The extender needs a DC 12 V supply capable of delivering 600 mA.
It supports up to 1280 × 1024 pixels at 60 Hz.
Up to 180 m for the AV‑E2/E4 models and up to 300 m for the AV‑E8 model.
