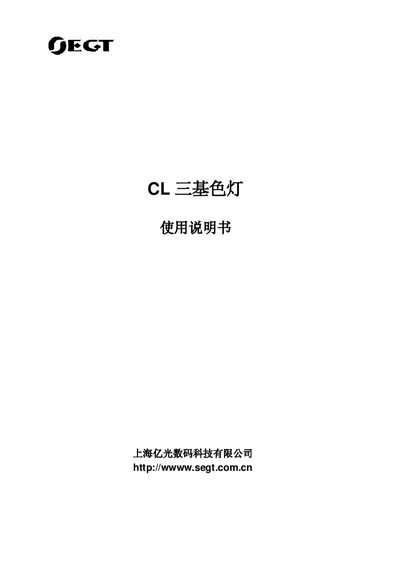

CL three-color lamp user manual, including product installation, light source selection, precautions, important tips, pre-installation, lamp installation, accessories and other content.
This manual explains safe handling and installation of the SEGT CL three primary color lighting fixtures, which are designed for professional stage, TV studio, and theater use. It includes warnings, grounding requirements, and recommended cable and fuse specifications.
The guide covers lamp installation, DMX512 and 0‑10V control wiring, fuse replacement, and adjustment of the lighting angle. Model‑specific dimensions, weights, and lamp power (55 W per tube) are listed, along with the required 230‑250 V 50 Hz three‑phase power supply. This manual is written in Chinese.
| Lamp power per tube | 55 W |
|---|---|
| Number of tubes | 2, 4, or 6 |
| Fuse rating | 5 A 250 V |
| Required fuse in socket | 5 A |
| Power supply | 230‑250 V, 50 Hz three‑phase star |
Remove the existing fuse from the rear panel and replace it with a 5 A 250 V HRC fuse (5 × 20 mm).
It operates from a 230‑250 V, 50 Hz three‑phase star‑type power source.
