PCI-916 is a 16-channel, 12-bit, 110kS/s multi-function data acquisition card with flexible input configuration. The card provides 4 programmable configurations for single-pole and bipolar input ranges. The PCI-916 has a resolution of 12 bits and a sampling rate of 110kS/s. It supports automatic scanning of input channels and provides a mode of 8 differential analog input to maximize noise cancellation. It also provides 16 channels of single-ended analog input mode. PCI-916 also has 2 channels of 12-bit analog output, 1 channel of 16-bit general timer/counter, 16 channels of TTL digital input and 16 channels of TTL digital output.
The PCI-916 is a high‑speed, multifunction DAQ card offering flexible input configurations, programmable gain, and both single‑ended and differential analog inputs. It includes 2 analog output channels, a 16‑bit timer/counter, and 16 TTL digital I/O lines, making it suitable for a wide range of measurement applications.

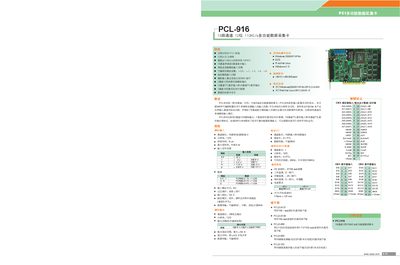

The card operates in standard PC environments (Windows, DOS, Linux) and provides driver support for popular development tools. It is housed in a compact half‑height PCI form factor and meets typical industrial temperature and humidity specifications. This manual is written in Chinese.
| Analog input channels | 16 single‑ended or 8 differential |
|---|---|
| Resolution | 12 bit |
| Maximum sampling rate | 110 kS/s |
| Conversion time | 8 µs |
| Analog output channels | 2 channels, 12 bit |
| Digital I/O | 16 TTL inputs, 16 TTL outputs |
| Operating temperature | 0 °C – 60 °C |
| Card dimensions | 175 mm × 107 mm |
It provides 16 single‑ended analog input channels or 8 differential channels.
The card has a 12‑bit resolution for both analog input and output.
The maximum sampling rate is 110 kS/s.
