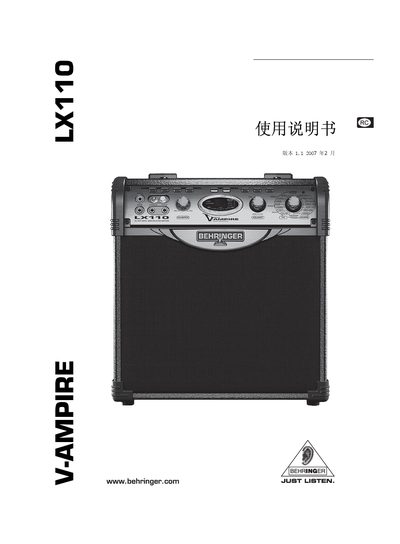

V-AMPIRE LX110 user manual, mainly contains product safety instructions and detailed safety instructions.
This manual introduces the V-AMPIRE LX110 guitar amplifier, covering safety precautions, proper installation, and basic operation. It explains how to connect a guitar, use the footswitch, and adjust volume and tone controls.
Detailed sections describe the built‑in effects processor, preset management, tuner function, and provide a full technical specification table for power, inputs, outputs, dimensions, and performance parameters. This manual is written in Chinese.
| Guitar input type | 6.3 mm mono jack, unbalanced, ~1 MΩ input impedance, +5 dBu max level |
|---|---|
| Headphone/line output | 6.3 mm stereo jack, unbalanced, ~50 Ω output impedance, +18 dBu @10 kΩ / +21 dBm @100 Ω max |
| Power output | 45 W into 4 Ω |
| Built‑in speaker | 10‑inch Bugear driver, 4 Ω, 50 W (IEC) |
| Power supply voltage | 120 V ~ 60 Hz (US/CA) or 230 V ~ 50 Hz (EU/UK/AU) etc. |
| Dimensions (H × W × D) | ≈395 mm × 355 mm × 215 mm |
| Weight | ≈8.2 kg |
| Audio sampling rate | 31.250 kHz |
Connect the guitar to the front‑panel 6.3 mm mono input labeled GUITAR using a 6.3 mm plug cable.
