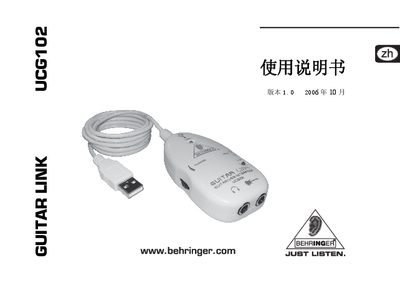

This manual is the user manual for Behringer GUITAR LINK UCG102. It mainly introduces the product's features and usage methods.
This manual introduces the Behringer GUITAR LINK UCG102, a guitar‑to‑USB interface that lets you record and play through your computer. It explains the product’s purpose, packaging, and registration process.
The guide covers safety warnings, control elements, connector usage, supplied software, audio connection methods, technical specifications, and example usage scenarios, helping users set up and operate the device safely and effectively. This manual is written in Chinese.
| Output impedance (High) | 250 kΩ |
|---|---|
| Output impedance (Low) | 400 kΩ |
| Maximum output level | -2 dBu, 2 × 3.7 mW @ 100 Ω |
| USB interface | USB 1.1 Type‑A |
| Sampling rate | 32 / 44.1 / 48 kHz |
| Bit depth | 16‑bit |
| Power supply | 5 V, 100 mA |
| Dimensions (H × W × D) | 24.6 mm × 95.6 mm × 50.8 mm |
| Weight | ≈0.092 kg |
| Required OS (PC) | Windows XP, Pentium 700 MHz or Athlon XP 1.33 GHz, 256 MB RAM |
| Required OS (Mac) | Mac OS X v10.3.x, G4 733 MHz, 512 MB RAM |
The UCG102 uses a USB 1.1 Type‑A connector for both data and power.
The maximum output level is –2 dBu, which corresponds to 2 × 3.7 mW into a 100 Ω load.
The software supports Windows XP (Pentium 700 MHz or Athlon XP 1.33 GHz, 256 MB RAM) and Mac OS X v10.3.x (G4 733 MHz, 512 MB RAM).
