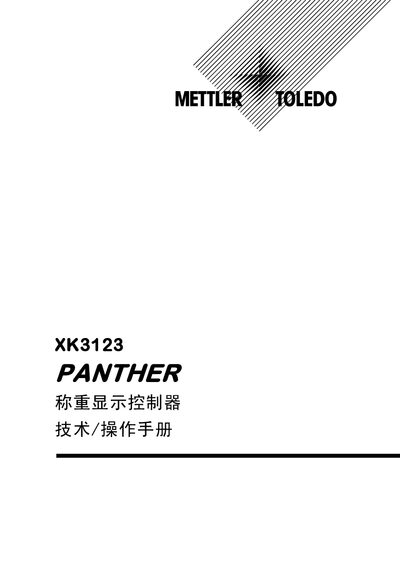

Xk3123 panther weight display controller technical / operating manual, mainly introduces the product's technical characteristics, appearance characteristics, installation and debugging, operation, parameter setting and scale calibration, maintenance and maintenance, plc interface and other content
This manual describes the XK3123 PANTHER weight display controller, a stainless‑steel weighing terminal that complies with NEMA4/IP65 standards. It outlines the device’s technical features, environmental limits, and safety warnings for proper installation and maintenance.
The document is organized into sections covering installation and wiring, operation procedures, parameter setting, maintenance, and optional PLC interface modules. Detailed tables list default parameters, error codes, and communication formats for RS‑232, parallel I/O, and optional analog or relay outputs. This manual is written in Chinese.
| Front panel protection | NEMA4/IP65 |
|---|---|
| Enclosure protection | NEMA4X/IP65 |
| Maximum analog sensors | 6 × 350 Ω |
| Maximum display division | 10,000 d |
| Operating temperature range | -10 °C to 45 °C |
| Operating humidity range | 10 % to 95 % non‑condensing |
| Storage temperature range | -40 °C to 60 °C |
| Input signal current limit | 20 mA per output |
| Panel‑type dimensions | 92 mm × 171 mm × 132 mm |
Up to six 350 Ω analog sensors can be connected.
The controller operates from –10 °C to 45 °C.
Yes, the controller must be properly grounded.
The front panel meets NEMA4/IP65 protection.
