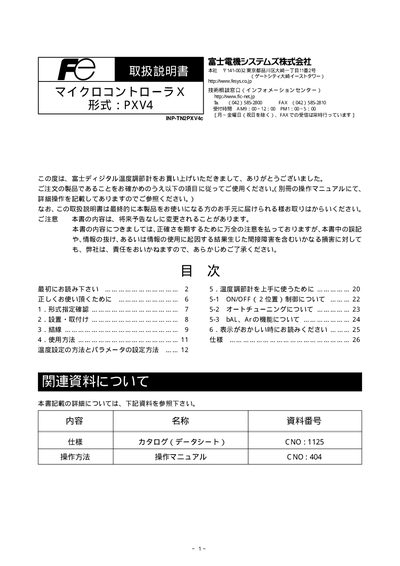

PXV4 INP-TN2PXV4c temperature controller user manual, which details the use of the temperature controller and its functional characteristics
This manual provides the necessary safety information, installation guidelines, wiring instructions, and operating procedures for the Fuji Electric PXV4 digital temperature controller. It includes details on sensor connections, control modes, output types, and troubleshooting tips.
The document also lists technical specifications such as ambient temperature range, power requirements, output ratings, and mechanical/electrical life, helping users configure the device correctly and maintain safe operation. This manual is written in Japanese.
| Sensor Input Types | Thermocouple, 3‑wire RTD, DC1‑5V |
|---|---|
| Control Method | PID, Fuzzy PID, ON/OFF (2‑position) |
| Relay Output | 1 A contact, AC220 V / DC30 V (resistive load) |
| SSR Output | Voltage pulse output |
| DC4‑20 mA Output | Standard analog current loop |
| Operating Voltage | AC100‑240 V, 50/60 Hz (or DC24 V) |
| Maximum Output Current | ≤ 60 mA |
| Mechanical Life | ≥ 10 000 000 cycles (no load) |
| Electrical Life | ≥ 100 000 cycles (rated load) |
| Ambient Temperature Range | -10 °C to 50 °C |
| Ambient Humidity | ≤ 90 % RH |
The controller can be installed in environments where the ambient temperature is between -10 °C and 50 °C.
Ensure all wiring is completed, verify required clearance distances, do not touch terminals while energized, and install any required protective circuits or fuses before applying power.
Allow about 30 minutes after power‑up for the unit to thermally stabilize before performing measurements.
