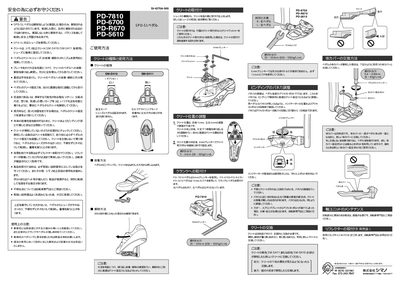

This document provides instructions and precautions for the use of PD-7810, PD-6700, PD-R670, PD-5610, SI-42T0A-005, SM-SH11, SM-SH10, etc.
The manual explains safety precautions for using SPD‑SL compatible pedals, including proper cleat installation, regular wear checks, and riding techniques to prevent accidental release. It emphasizes adjusting cleat tension, using reflectors at night, and keeping the pedal and cleats clean.
Installation and maintenance sections detail the tools required (8 mm Allen key for PD‑7810, 15 mm wrench for other models), torque specifications, spring‑adjustment procedures, cleat replacement, body‑cover replacement, and axle‑unit maintenance. The guide also includes instructions for attaching optional reflectors. This manual is written in Japanese.
| PD‑6700/PD‑R670/PD‑5610 bolt torque | 35‑55 N·m (350‑550 kgf·cm) |
|---|---|
| Tool for PD‑7810 installation | 8 mm Allen key |
| Tool for PD‑6700/PD‑R670/PD‑5610 installation | 15 mm wrench |
The pedal can be released only by twisting the heel outward.
An 8 mm Allen key is required for installing the PD‑7810 pedal.
