The SS400 Series digital position sensors feature a supply voltage range of 3.8-30 VDC, digital current sinking output, temperature compensated magnetics, and more.
The SS400 Series are solid‑state digital position sensors with a quad‑Hall design, temperature‑compensated magnetics and customizable operate/release points. They operate from 13.8‑30 VDC and can sink up to 20 mA continuously (50 mA absolute maximum).

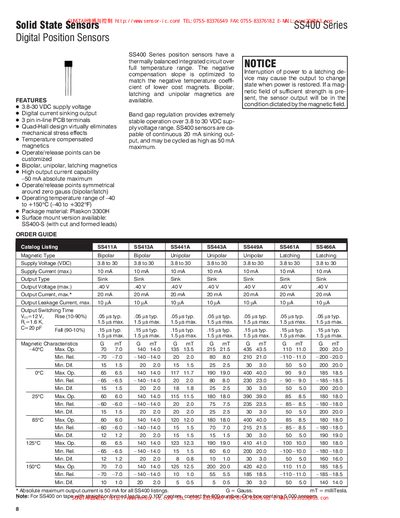

The document lists detailed electrical specifications, magnetic characteristics, switching times, and ordering options for the various magnetic types (bipolar, unipolar, latching). Each box contains 5,000 sensors and several package styles (standard lead, surface‑mount, reduced‑lead) are available.
| Supply Voltage | 13.8‑30 VDC |
|---|---|
| Continuous Output Current | 20 mA sinking |
| Maximum Output Current (absolute) | 50 mA |
| Typical Rise Time (10‑90%) | 0.05 µs |
| Operating Temperature Range | -40 °C to +150 °C |
It operates from 13.8 VDC up to 30 VDC.
The sensor can continuously sink 20 mA.
One box contains 5,000 sensors.
Bipolar, unipolar and latching magnetics are offered.
