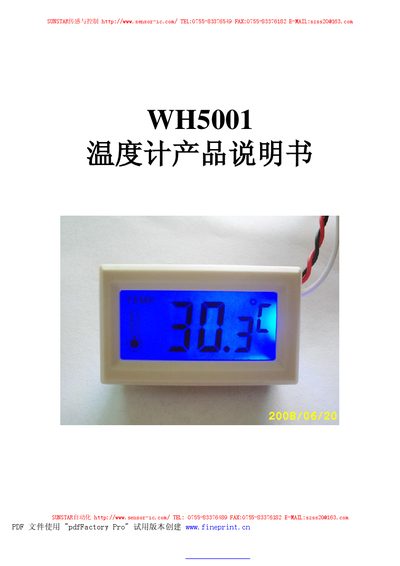

This document provides information about the installation dimensions, wiring diagram, and electrical performance of the WH5001 thermometer. It uses an NTC (10K/3435) sensor and has a temperature measurement range of -50℃ to 70℃ with an accuracy of ±0.5℃. The thermometer is suitable for applications such as automotive water temperature detection, air conditioning, refrigerator temperature detection, water heater temperature detection, and computer chassis temperature detection.
The Sunstar WHS5001 is a temperature sensor designed for industrial applications. This datasheet provides key electrical and environmental specifications.
The document includes operating temperature ranges, NTC characteristics, and maximum current ratings, allowing engineers to assess suitability for their projects.
| Operating Temperature Range | -50°C ~ 70°C |
|---|---|
| Storage Temperature Range | -10°C ~ 60°C |
| Maximum Current | 20 mA |
| NTC Value | 10 kΩ @ 25°C (B=3435) |
The sensor operates from –50 °C to 70 °C.
The maximum current rating is 20 mA.
The sensor uses an NTC thermistor of 10 kΩ with a B‑value of 3435.
