TDS-110 Ultrasonic Thickness Gauge adopts ultrasonic measurement principle, which is suitable for measuring the thickness of various materials that can make ultrasonic wave propagate at a constant speed in the inner and get reflected from the back. The instrument can measure various plates and various processed parts accurately. Another important aspect is that it can monitor various pipes and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use. It can be widely used in petroleum, chemical, metallurgical, shipbuilding, aviation, aerospace and other fields.
The TDS-110 ultrasonic thickness gauge uses ultrasonic pulse‑echo technology to measure material thickness from 0.75 mm to 225 mm. It is suitable for plates, pipes, pressure vessels and a wide range of industrial materials.

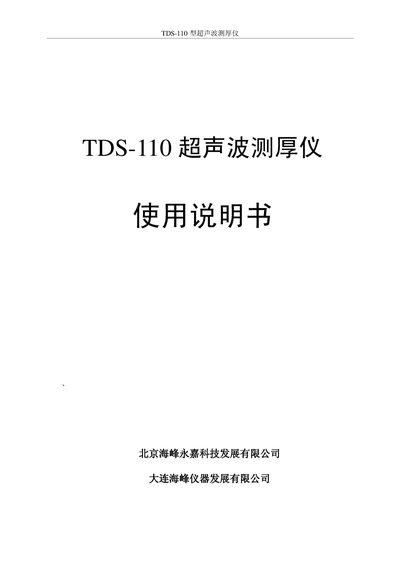

The manual explains how to set sound speed, perform probe calibration, operate the measurement functions, manage stored data, and maintain the instrument safely. Detailed troubleshooting and precautionary advice are provided for reliable use. This manual is written in Chinese.
| Measurement range | 0.75 mm ~ 225 mm |
|---|---|
| Sound speed range | 1000 m/s ~ 9999 m/s |
| Display resolution | 0.01 mm (≤100 mm) / 0.1 mm (>100 mm) |
| Power supply | 2 × AA batteries, up to 100 h |
| Communication port | RS‑232 serial |
| Dimensions | 150 mm × 74 mm × 32 mm |
| Weight | 238 g |
| Measurement speed | 20 measurements per second |
| Data storage capacity | 500 data sets, 5 files (100 sets each) |
Press the VEL key to enter sound‑speed mode; each press cycles through the five stored sound‑speed values, which can be adjusted with the © or ª keys.
Enter the MENU, move the cursor to ALARM, then use the « key to view the current limits and adjust the lower or upper limit with the © or ª keys.
