YST-SW105 is a subwoofer produced by Yamaha. It has an auto-standby function and can be connected to an amplifier with a subwoofer output or an amplifier without a subwoofer output.

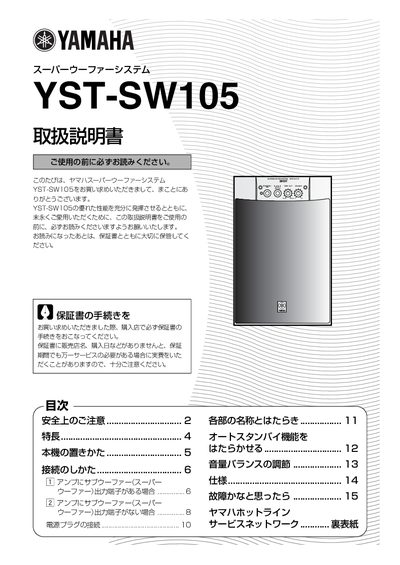

This manual covers safety precautions, recommended installation distances, and proper placement of the YST‑SW105 super‑woofer to achieve optimal low‑frequency performance. It also explains the advanced YST technology and the auto‑standby feature.
Detailed wiring diagrams show how to connect the unit to an amplifier, including methods for systems without a dedicated subwoofer output, and provides a troubleshooting table for common issues such as power failure or low‑bass output. This manual is written in Japanese.
| Minimum distance from wall (front) | 20 cm |
|---|---|
| Recommended distance from wall (rear) | 50 cm |
