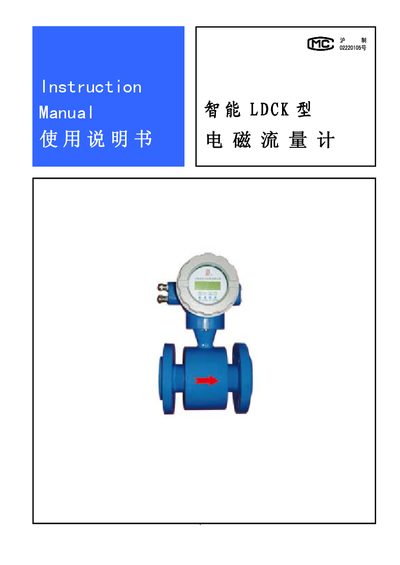

LDCK electromagnetic flowmeter is a high-precision, reliable product designed and manufactured by Shanghai Ziyi Jiu Instrument Co., Ltd. It is suitable for measuring the volume flow of conductive media such as acid, alkali, salt solution, mud slurry, paper pulp and wastewater, and there is no additional pressure loss in the measuring tube.
The Ziyi LDCK electromagnetic flow meter is a high‑precision, high‑reliability device for measuring the volumetric flow of conductive liquids such as acids, alkalis, salts, slurries, pulp and wastewater. It is offered in integrated (one‑piece) and split (sensor‑converter separate) configurations, with optional display units showing instantaneous and cumulative flow.
The manual covers the meter’s basic parameters, technical data, installation requirements, grounding, wiring, output signal options, parameter settings, alarm handling, fault troubleshooting, and mechanical dimensions. Appendices provide details on dip‑switch settings and converter dimensions, as well as a user feedback form. This manual is written in Chinese.
| Conductivity range | ≥ 20 µS/cm |
|---|---|
| Measurement range (velocity) | 0.3 – 10 m/s |
| Signal output (current) | 4 – 20 mA DC (standard) / 0 – 10 mA DC (special) |
| Power supply | 220 V AC ±10%/‑15% 48‑63 Hz (standard) / 24 V DC ±10%/‑15% (special) |
| Power consumption | ≤ 15 VA |
| Maximum flow (example model LDCK‑100) | 100 m³/h |
| Nominal pressure (example model LDCK‑100) | 1.6 MPa |
| Nominal diameter (example model LDCK‑100) | 100 mm |
| Electrode material | 0Cr18Ni12Mo2Ti |
The converter can output a standard 4‑20 mA DC current, a 0‑10 mA DC current, pulse output, or a frequency signal from 1 Hz to 5000 Hz.
