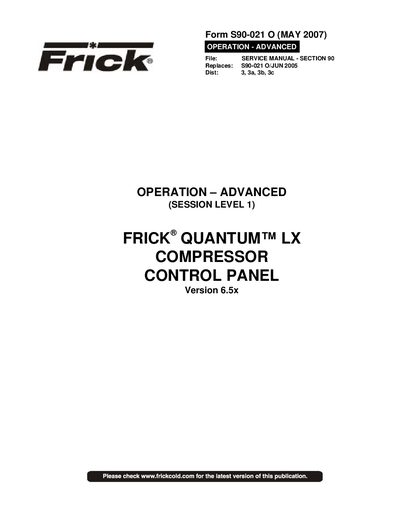

Frick Quantum LX Compressor Control Panel Service Manual

About this manual

The Frick Quantum LX Compressor Control Panel Service Manual provides detailed information on operating the compressor, including the user interface, key functions, menu structure, and screen displays. It explains how the panel monitors and controls the compressor and its subsystems, and describes the various status boxes that present pressure, temperature, and safety information.

The manual also covers setup procedures, capacity and volume control, safety warnings, shutdown handling, and troubleshooting tips. Operators can use the described keypad functions and menu navigation to adjust setpoints, view real‑time data, and respond to alarms.

What's inside

• Overview of Operator Interface
• Common Terminology
• Operator Access
• Keys and Key Functions
• Menu Structure
• Operating Display Screens
• Capacity/Volume Control Box
• Warning/Shutdowns Status Box
• Oil Lubrication Device Status Box
• Motor Status Box

Specifications

Frequently asked questions

How do you stop the compressor when it is in Manual Mode?

Press the [STOP] key; this immediately stops the compressor by placing it into Stop Mode.

Which keypad key silences an active alarm?

Press the [ALARM SILENCE] key to immediately silence a sounding alarm and turn off the alarm annunciation device.
