Featured F&S Elektronik Systeme GmbH manuals

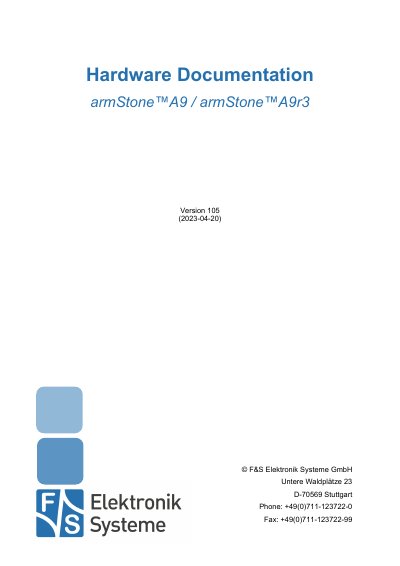

F&S Elektronik Systeme armStone A9/A9r3 Hardware Documentation
This document provides comprehensive hardware documentation for the armStone™A9 and armStone™A9r3 picoITX boards manufactured by F&S Elektronik Systeme GmbH. It details mechanical dimensions, including PCB thickness and component heights, alongside a block diagram illustrating internal architecture.
The guide covers extensive technical data, such as power supply requirements (5V DC), supported interfaces like Gbit Ethernet, USB 2.0, SATA, and various LVDS/TTL display connectors. It also includes thermal specifications for the i.MX6 CPU, ESD handling guidelines, packaging information, and warranty terms.
Covers: About This Document · ESD Requirements · History · Block Diagram · Mechanical Dimension · Technical Data
Latest F&S Elektronik Systeme GmbH manuals
F&S Elektronik Systeme armStone A9/A9r3 Hardware Documentation
User Manual 32 pages · 1.9 MB · ENHardware documentation for the F&S Elektronik Systeme armStone A9 and A9r3 boards, covering mechanical dimensions, electrical interfaces, thermal…
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in F&S Elektronik Systeme GmbH manuals
What is the difference between armStone A9 and armStone A9r3?
The only difference between these two modules is the used Gbit Ethernet PHY.
From: F&S Elektronik Systeme armStone A9/A9r3 Hardware Documentation
What are the ESD requirements for handling this product?
All products are handled and packaged according to ESD guidelines, and users should not handle or store material in ESD-unsafe environments.
From: F&S Elektronik Systeme armStone A9/A9r3 Hardware Documentation
