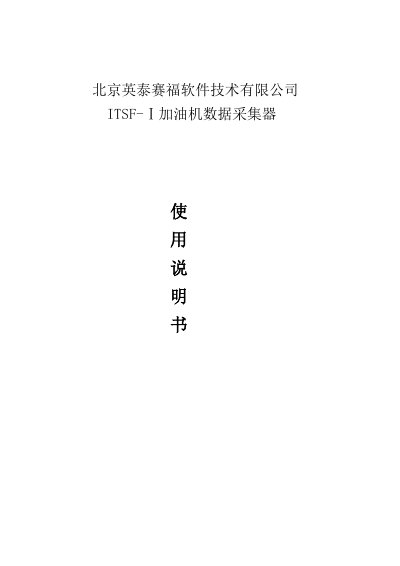

Beijing Yingtai Saifu Software Technology Co., Ltd. ITSF-I Fuel Dispenser Data Collector User Manual

The ITSF-I Fuel Dispenser Data Collector is a device designed for tax authorities and metrology departments to manage tax-controlled fuel dispensers. It supports four specific versions: General Purpose, Metering Specialized, Fuel Dispenser Manufacturer Test, and Passive (Tax Specialized). The device features a 128x64 dot matrix LCD, a standard RS232 serial communication port, and an IC card interface for tax and metering cards. It operates on four 5# batteries (DC6V) and functions within a temperature range of -20°C to 45°C.

The manual details the operational procedures for each version, including how to connect the serial cable, insert IC cards, and navigate the menu system using the 19 keys. Key functions include initializing dispensers, reporting tax data, querying fuel volumes (daily, monthly, total), checking anti-cheating encoder sequences, and calculating metering errors. It also covers troubleshooting, maintenance, and service terms. This manual is written in Chinese.

Covers: Product Structure and Working Principle · Technical Specifications · General Type Operation · Metering Specialized Type Operation · Fuel Dispenser Manufacturer Test Type · Passive Type (Tax Specialized)
