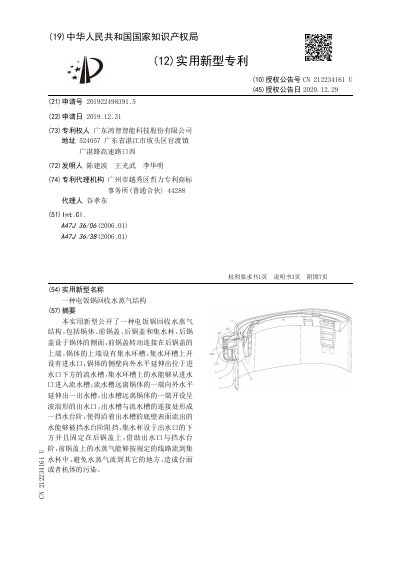

Hongzhi Rice Cooker Steam Recovery Structure Utility Model Patent

The document discloses a utility model for a rice cooker steam recovery structure, comprising a pot body, a front lid, a rear lid, and a water collection cup. The structure is designed to guide steam and water from the lid into a collection cup to prevent contamination of the surrounding area.

The mechanism includes a water collection ring groove on the pot body with an inlet, a flow channel extending from the pot side wall, and an outlet channel with a wavy outlet. A water-blocking step is formed at the connection between the flow channel and the outlet channel to stop water from flowing along the bottom surface, ensuring it drops into the collection cup fixed below the outlet. This manual is written in Chinese.

Covers: Technical Field · Background Technology · Utility Model Content · Claims · Brief Description of Drawings · Detailed Description of Embodiments
