Featured Jinan Qingfeng Electronics manuals

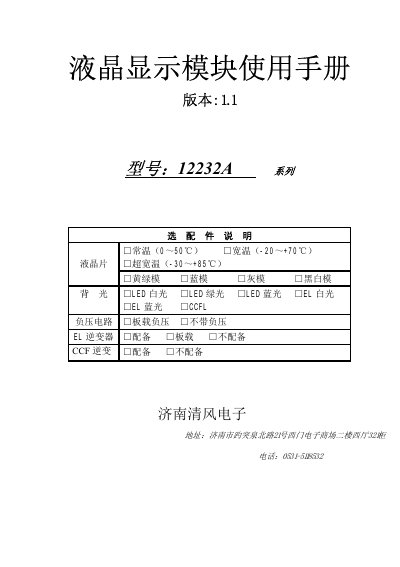

Jinan Qingfeng Electronics 12232A LCD Module User Manual
The document is a user manual for the 12232A series Liquid Crystal Display (LCD) modules manufactured by Jinan Qingfeng Electronics. It covers various module types including STN with EL or LED backlight sources, and supports different color modes such as blue, green, black/white, amber, and red. This manual is written in Chinese.
Covers: Module Characteristics · Electrical Parameters · Pin Descriptions · Command Set · MPU Interface · Program Examples
Latest Jinan Qingfeng Electronics manuals
Jinan Qingfeng Electronics 12232A LCD Module User Manual
User Manual 14 pages · 108 KB · ZHThis manual provides usage instructions, electrical parameters, pin descriptions, and program examples for the 12232A series liquid crystal display module.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in Jinan Qingfeng Electronics manuals
What voltage is required for the white LED backlight option?
The white LED backlight requires a DC power supply of 4.2 volts.
From: Jinan Qingfeng Electronics 12232A LCD Module User Manual
