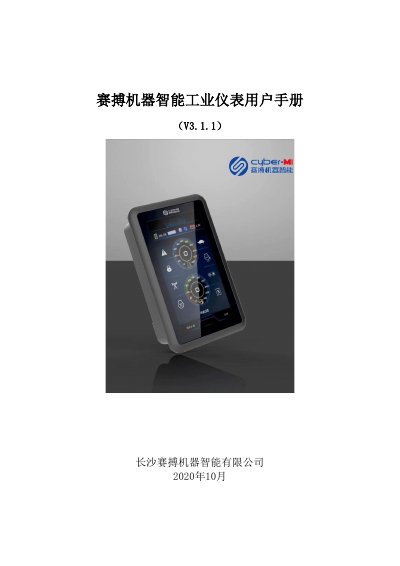

Saibo Machine Intelligence V3.1.1 Industrial Instrument User Manual

This document is the user manual for the Saibo Machine Intelligence V3.1.1 industrial instrument, developed by Changsha Saibo Machine Intelligence Co., Ltd. The device serves as a high-performance integrated display and control platform designed for industrial control and construction machinery. It features a 32-bit ARM CPU running on a real-time Linux operating system and supports various standard development languages including Ladder Diagram and Structured Text.

The manual details the instrument's key characteristics, including its display capabilities, touch sensitivity, and rugged military-grade quality. It provides comprehensive information on hardware ports, such as power connections, input/output definitions for 35-pin and M12 connectors, and communication interfaces like Ethernet, CAN, USB, and RS485. Additionally, it outlines the physical dimensions and installation requirements for the 7-inch and 10.1-inch models. This manual is written in Chinese.

Covers: Company and Product Introduction · Product Features · Hardware Ports · Power Port · Input/Output Port Definitions · Input Port Characteristics
