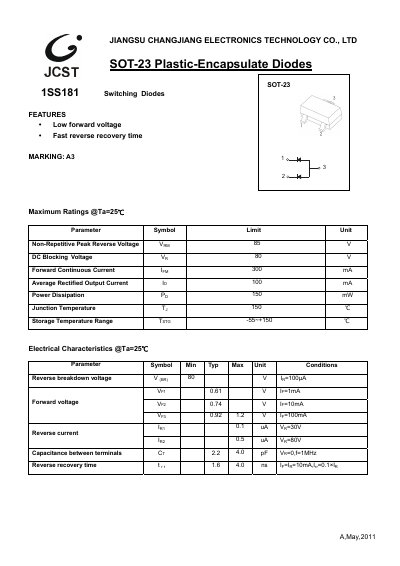

Jiangsu Changjiang Electronics Technology Co., Ltd. 1SS181 Switching Diode Datasheet

The document provides a technical overview of the 1SS181 switching diode manufactured by Jiangsu Changjiang Electronics Technology Co., Ltd. It is available in an SOT-23 plastic encapsulation and features a low forward voltage drop along with a fast reverse recovery time suitable for various electronic applications.

Key specifications include a DC blocking voltage of 80V, a non-repetitive peak reverse voltage of 85V, and a maximum power dissipation of 150mW. The datasheet lists electrical characteristics such as forward voltage at different currents (ranging from 0.61V to 1.2V) and reverse recovery time between 1.6ns and 4.0ns.

Covers: Features · Marking · Maximum Ratings · Electrical Characteristics · Typical Characteristics · Forward Characteristics
