Featured Sheet Metal Guy manuals

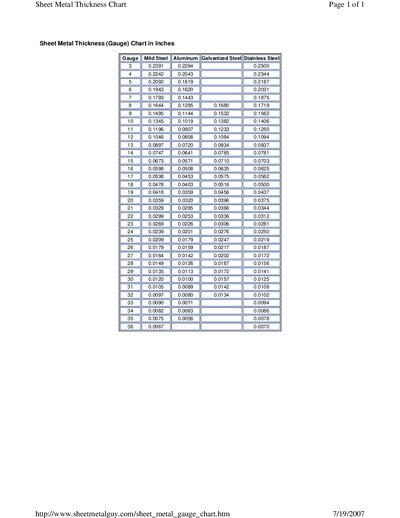

Sheet Metal Thickness Gauge Chart in Inches
This document provides a comprehensive chart of sheet metal thickness measured in inches. It covers four specific material types: mild steel, aluminum, galvanized steel, and stainless steel.
The data is organized by gauge number, ranging from 3 to 36. For each gauge, the corresponding thickness values are listed for all four materials, allowing users to quickly reference standard dimensions.
Covers: Mild Steel Thickness · Aluminum Thickness · Galvanized Steel Thickness · Stainless Steel Thickness · Sheet Metal Gauge Chart
Latest Sheet Metal Guy manuals
Sheet Metal Thickness Gauge Chart in Inches
Datasheet 1 pages · 26 KB · ENA reference chart listing sheet metal thickness in inches for mild steel, aluminum, galvanized steel, and stainless steel across various gauges.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Sheet Metal Guy manuals
What is the thickness in inches of a 10-gauge mild steel sheet?
The thickness is 0.1345 inches.
How thick is a 20-gauge galvanized steel sheet?
The thickness is 0.0396 inches.
