QL120_A3 Universal Programmer Adapter User Guide
The QL120_A3 is a next-generation universal programmer adapter developed by Shenzhen Qianlongsheng Electronic Technology Co., Ltd. It supports programming all 5V-powered PIC devices with up to 40 pins by connecting to programmers such as ICD2, MCD2, or PICKIT2 via an ICSP interface. This manual is written in Chinese.
Covers: Direct Insertion Device Programming · Surface Mount Device Programming · ICD2/MCD2 Internal Oscillator Support · Interface Descriptions (J1-J6) · LED Indicator Status · Programming Procedure Steps
Latest QL120_A3 manuals
QL120_A3 Universal Programmer Adapter User Guide

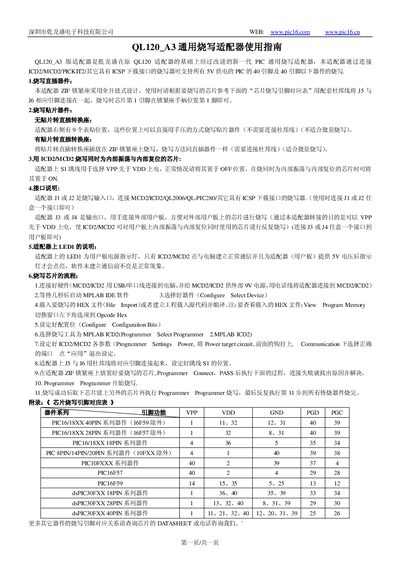

User Manual 1 pages · 58 KB · ZHThis guide covers the operation, connection methods, and programming procedures for the QL120_A3 universal programmer adapter designed for 5V PIC devices.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in QL120_A3 manuals
How do I program surface mount devices?
You can use the 9 built-in surface mount positions on the right side to press-fit and burn chips directly without connecting jumper wires, though this is not suitable for batch burning.
What does the LED1 indicator signify?
LED1 indicates that the user board power is active; it only lights up after ICD2/MCD2 establishes normal communication with the computer and supplies 5V voltage.
