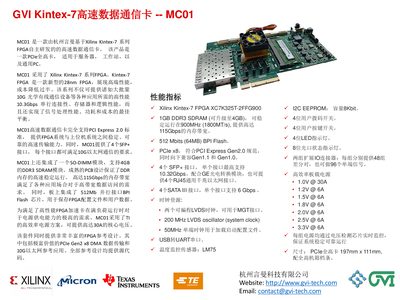

GVI MC01 High-Speed Data Communication Card Product Leaflet

The GVI MC01 is a full-height PCIe data communication card designed for servers, workstations, and general-purpose PCs. It is based on the Xilinx Kintex-7 series FPGA and supports high-performance 10G Ethernet communication via four SFP+ interfaces or RJ45 ports with optical modules. The card features 1GB of DDR3 SDRAM (upgradable to 4GB) and 512 Mbits of BPI Flash for configuration storage.

The MC01 includes a high-efficiency onboard power solution capable of delivering up to 30A core voltage, along with various interface options such as four SATA III ports and a USB-to-UART serial port. It provides extensive reference designs for PCIe Gen2x8 DMA data transfer and 10G Ethernet applications, with source code included. This manual is written in Chinese.

Covers: Performance Indicators · FPGA and Memory · Interface Specifications · Clock Resources · Power Management · Physical Dimensions
