This document is the operating instructions for Panasonic color television, providing usage precautions and safety guidelines. The document also mentions the installation guidelines for CATV systems.

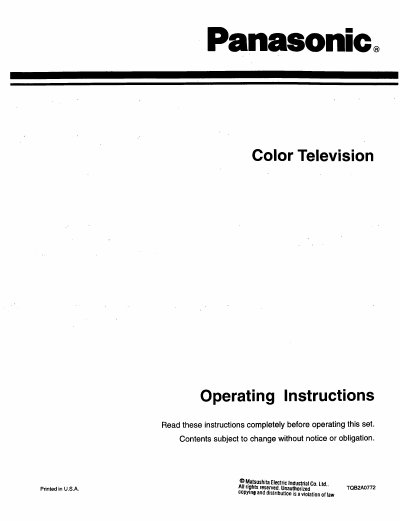

This manual provides operating instructions for the Panasonic TQB2A0772 color television. It includes important safety information regarding electrical shock and proper placement of the unit to prevent overheating or fire hazards.
The guide details how to install the antenna, connect external equipment such as VCRs or audio amplifiers, and operate the remote control features including volume, channel selection, picture adjustments (brightness, contrast, tint), and timer functions.
| Power Source | 120V 60Hz, AC |
|---|---|
| Channel Capability | 181 channels |
| Video Input Jack | 1V p-p, 75 ohm, phono jack type |
| Audio Input Jacks | High impedance — 10K ohm , 500mV rms |
Reduce brightness/contrast to minimum, do not display fixed images for extended periods, and turn power off when not in use.
The television must be operated from a 120V 60Hz AC power source.
This television is capable of receiving a total of 181 channels.
The video input uses a 1V p-p, 75 ohm, phono jack type.
