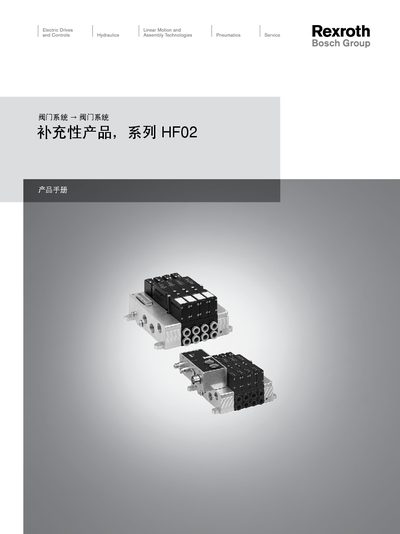

Bosch Rexroth HF02 Valve System User Guide
This guide describes the HF02 valve system series from Bosch Rexroth, covering technical data, electrical and mechanical connections, and safety notes. It includes details on pressure ranges, temperature limits, IP protection, and power requirements.
The document also lists contact information for Bosch Rexroth Pneumatics, including phone numbers, email addresses, and web links for further support and product documentation.
Rexroth HF02 specifications
| Maximum flow (Qn) | 1400 l/min |
|---|---|
| Working pressure range | -0.9 bar to 10 bar |
| Control pressure (min / max) | 2.5 bar / 10 bar |
| Environmental temperature range | 0 °C to 50 °C |
| Medium temperature range | 0 °C to 50 °C |
| Medium | Compressed air |
| Maximum particle size | 5 µm |
| Oil content in air | 0 mg/m³ – 5 mg/m³ |
| Number of valve positions | 32 |
| Number of coils | 32 |
| Operating voltage | 24 V DC |
| Voltage tolerance | -15 % / +20 % |
Source: Bosch Rexroth HF03/02 Valve System Complementary Products User Guide
All Rexroth HF02 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum flow rate for the HF03/02 series?
The maximum flow rate (Qn) is 1400 l/min.
From: Bosch Rexroth HF03/02 Valve System Complementary Products User Guide
What are the operating pressure limits?
The working pressure range is from -0.9 bar to 10 bar.
From: Bosch Rexroth HF03/02 Valve System Complementary Products User Guide
What is the pressure range of the HF02 valve system?
The HF02 valve system operates from -0.9 bar up to 10 bar.
What temperature range can the HF02 valve system handle?
It is rated for temperatures between 40 °C and +50 °C.
