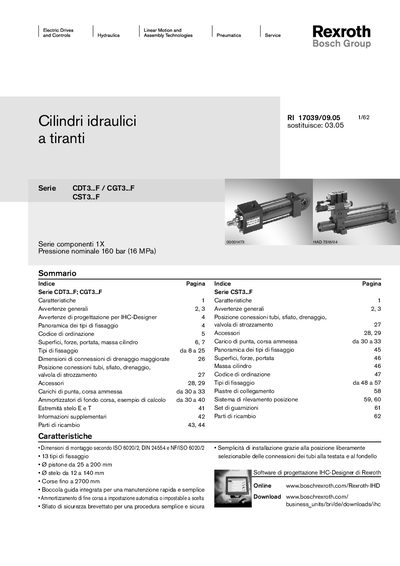

Bosch Rexroth CDT3...F CGT3...F CST3...F Hydraulic Cylinder Manual
This document provides detailed information on the Bosch Rexroth series of hydraulic tie‑rod cylinders (CDT3...F, CGT3...F, CST3...F). It includes general warnings, design guidelines, and a comprehensive overview of fixing types, dimensions, and optional accessories.
The manual also describes the IHC‑Designer software for quick hydraulic cylinder design, presents technical data such as pressures, strokes, and forces, and outlines installation procedures, seal options, and guide bush specifications. This manual is written in Italian.
Rexroth CST3 specifications
| Pressione nominale | 160 bar (16 MPa) |
|---|---|
| Pressione dinamica massima con valvola di strozzamento | 240 bar |
| Pressione minima consigliata | 10 bar |
| Corsa massima | fino a 2700 mm |
| Diametro pistone | 25 – 200 mm |
| Diametro stelo | 12 – 140 mm |
| Tipi di fissaggio disponibili | 13 tipi (ISO 6020/2) |
| Standard di montaggio | ISO 6020/2, DIN 24554, NF/ISO 6020/2 |
| Materiale boccola guida dello stelo | Ghisa grigia GGG‑50 DIN 1693 |
| Tipi di guarnizione disponibili | M (standard), T (attrito ridotto), V (alta temperatura) |
Source: Bosch Rexroth CDT3...F CGT3...F CST3...F Hydraulic Cylinder Manual
All Rexroth CST3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the nominal pressure of the CDT3/CGT3/CST3 hydraulic cylinders?
The nominal pressure is 160 bar (16 MPa).
From: Bosch Rexroth CDT3...F CGT3...F CST3...F Hydraulic Cylinder Manual
What is the maximum dynamic pressure allowed when using a throttling valve?
The cylinder pressure must not exceed 240 bar in that configuration.
From: Bosch Rexroth CDT3...F CGT3...F CST3...F Hydraulic Cylinder Manual
What is the maximum continuous pressure rating for these cylinders?
The cylinders are designed for a nominal continuous pressure of 160 bar.
From: Bosch Rexroth CDT3...F / CGT3...F / CST3...F Hydraulic Cylinders Tie Rod Design Manual
Which seal versions are offered for the cylinders?
Three seal versions are available: M (standard), T (low friction) and V (high‑temperature).
From: Bosch Rexroth CDT3...F / CGT3...F / CST3...F Hydraulic Cylinders Tie Rod Design Manual
