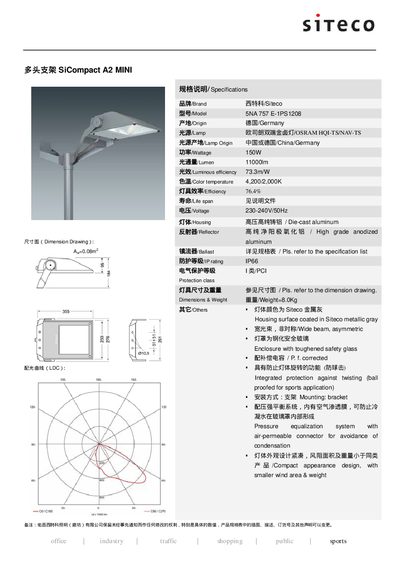

Siteco SiCompact A2 MINI User Manual
This manual describes the technical specifications of the Siteco SiCompact A2 MINI multi‑head stand, including its 150 W power rating, 11 000 lm output, and luminous efficacy of 73.3 lm/W. Electrical details such as 230‑240 V/50 Hz operation and an IP66 protection rating are also listed.
The document also covers physical characteristics: a die‑cast aluminum housing with a high‑grade anodized aluminum reflector, a total weight of 8.0 kg, and dimensions shown in the dimension drawing. Installation notes include a bracket mounting system, pressure‑equalization with an air‑permeable connector, and integrated protection against twisting for sports applications.
Siteco SiCompact A2 MINI specifications
| Wattage | 150 W |
|---|---|
| Lumen output | 11 000 lm |
| Luminous efficacy | 73.3 lm/W |
| Color temperature | 4200 K / 2000 K |
| Operating voltage | 230‑240 V / 50 Hz |
| IP rating | IP66 |
| Weight | 8.0 kg |
| Housing material | Die‑cast aluminum |
All Siteco SiCompact A2 MINI documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the wattage of the SiCompact A2 MINI?
The SiCompact A2 MINI operates at 150 W.
What IP rating does the SiCompact A2 MINI have?
It has an IP66 protection rating.
What is the wattage of the SiCompact A2 MINI?
The lamp operates at 150 W.
What IP protection does the stand have?
It is rated IP66 for dust and water protection.
